Description

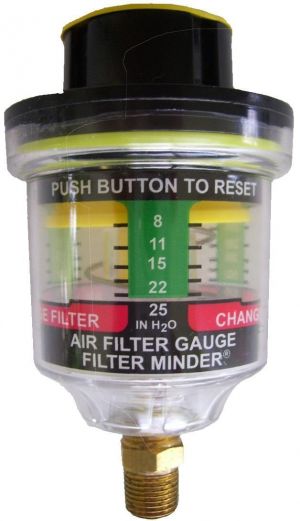

AFR2D3 -    AIR FILTER CHANGE GAUGE

Filter Minder Part # B35501-10825

DIESEL ENGINES

 FEMALE 1/8" N.P.T  MOUNTING THREADS

OR use with INCLUDED

1/8"  N.P.T.  MALE / MALE  FITTING

3.25" HIGH  2" WIDE

RED Zone is 25" (635mm) H20 Vacuum.

The AFR2D3 measures the Vacuum restriction caused by the contamination of the Air Filter.

As the internal Yellow Diaphram  moves down through the GREEN zone on the Gauge, The Air Filter is becoming increasingly contaminated.   When the Yellow Diaphram approaches the RED zone.... Change the Air Filter.   The gauge locks in position, so you can read it with the Engine OFF !

Push the Yellow Button on the top of the Gauge to reset it.

It is that simple.  STOP guessing when to change your Air Filter.

FREE SHIPPING ON ALL U.S. ORDERS

PayPal can also be used for All credit cards without a PayPal account

WE ARE AN AUTHORIZED DISTRIBUTOR FOR ALL FILTER

772-529-2209   OR  INFO@FUELFIXERS.COM

Buying 2  or more AIR FILTER Gauges

ENTER CODE...  AF15   In the Redeem Coupon Area at check out and get 15% OFF and  FREE shipping.
